IPC-6012B-Qualification and Performance Specification for Rigid PCB

Do you konw what is the standard about IPC-6012 in PCB industry ?

It is the qualification and performance specification for rigid PCB.

SCOPE of IPC-6012:

This specification covers qualification and performance of rigid printed boards:

● The printed board may be single-sided, double-sided, with or without plated-through holes.

● The printed board may be multilayer with plated-through holes and with or withoutburied/blind vias.

● The printed board may be multilayer containing build up HDI layers conforming to IPC-6016.

● The printed board may contain active embedded passive circuitry with distributive capacitive planes, capacitive or resistive components.

● The printed board may contain a metal core or external metal heat frame, which may be active or nonactive.

Supporting documents:

The IPC-A-600 includes pictures, sketch map and photos to to help understand acceptable/non-compliant conditions observed from the outside and inside. It can be used in conjunction with  IPC-6012 to more fully understand its recommendations and requirements.

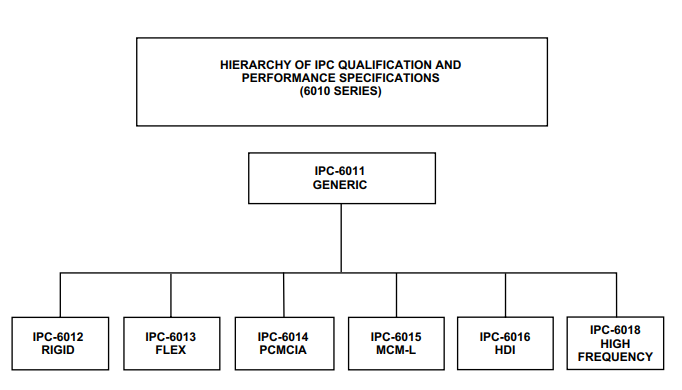

Please refer to the following informations for more detail about the PCB qualification and performance specification from IPC 6010 series:

IPC-6012  RIGID PCB

● IPC-6013  FLEX PCB

● IPC-6014  PCMCIA

● IPC-6015  MCM-L

● IPC-6016  HDI PCB

● IPC-6018  HIGH FREQUENCY PCB



Download or check the IPC-A-600G document please click here: Download

Download or check the IPC-6012B document please click here: Download

For more detail IPC standard please visit the wedsite: http://www.ipc.org/
