Rigid-Flex PCB

Rigid-Flex Circuit Board Manufacturing (Enquiry pls send to Sales@vipcircuit.com )

Rigid-flex Circuit Board Manufacturing & Assembly at Vip Circuit.Rigid-flex Printed Circuit Boards are one of the most popular types of circuit boards used in a variety of industrial and commercial applications. At Vip, we manufacture flexible printed circuits keeping the needs of our customers in mind. Our circuit boards provide quality and durable performance while being cost-effective in terms of manufacturing.

Why can there be Flexible, Rigid-flex board

1.Repeated bending millions of times can still maintain electrical performance

2.Can realize the impedance control of the thinnest insulation board. Under extreme circumstances, it can produce a flexible area with a thickness of less than 1mil reduces weight and reduces installation time and cost.

3.High heat resistance of materials. -Engine Controls  /-Chip scale Packages

4.Reducing the number of connectors can greatly save cost LCD (Hot bar, ACF.)/Batteries /Telecommunication (replace of coaxial-cable.)

5.Better thermal diffusivity. A planar conductor has a larger area volume ratio than a circular conductor, which is conducive to the diffusion of heat in the conductor

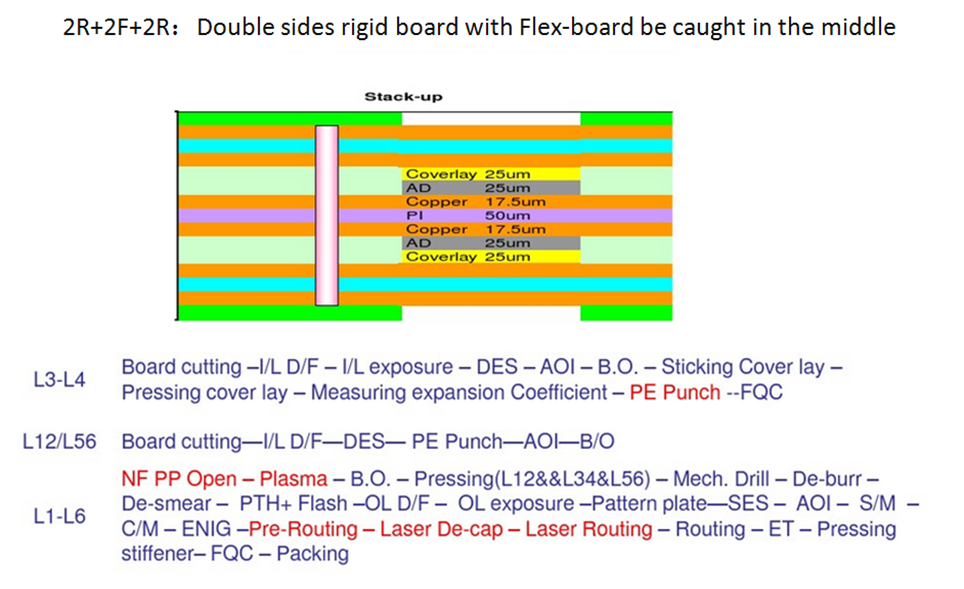

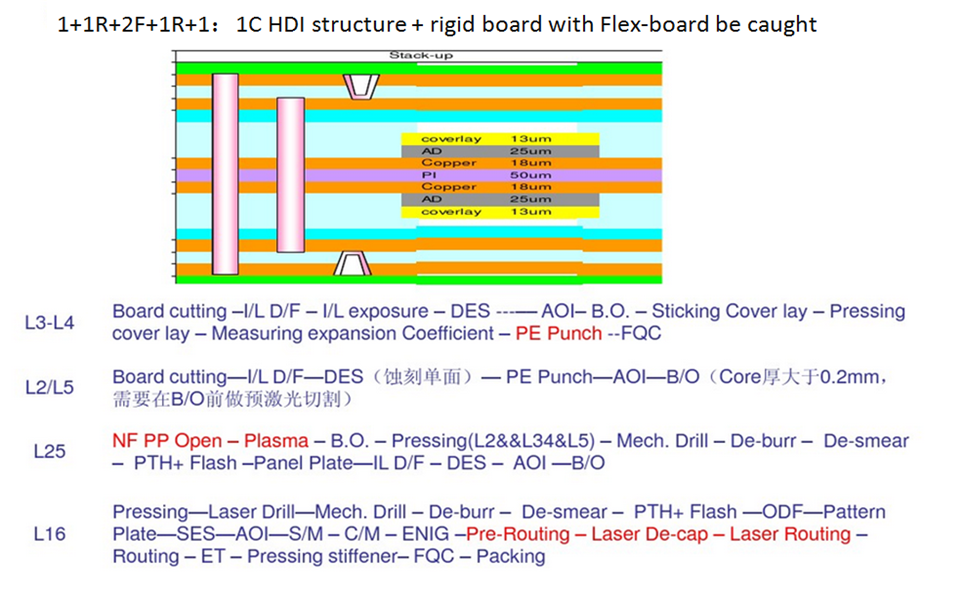

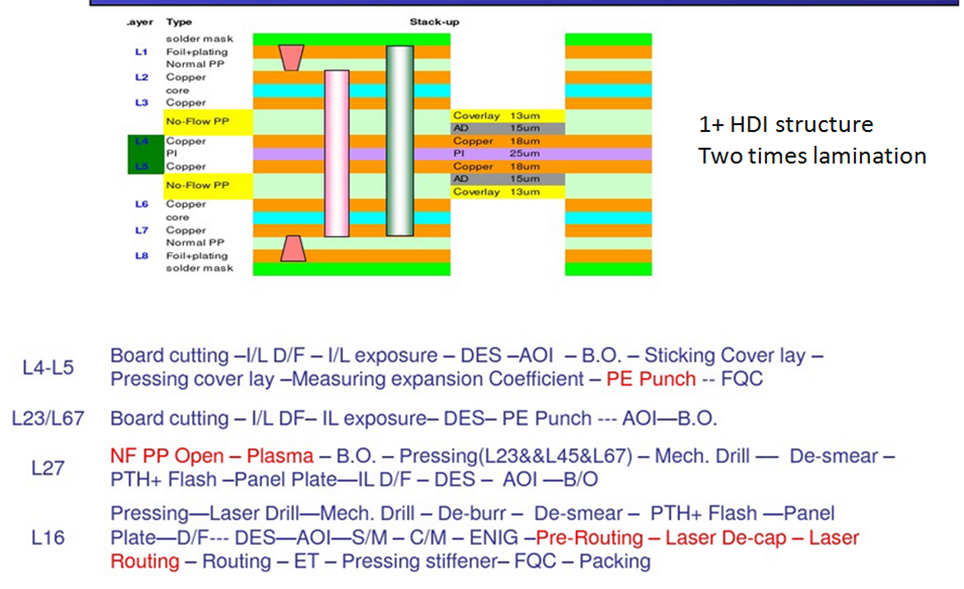

Common Structure and process flow of Rigid-flex board
